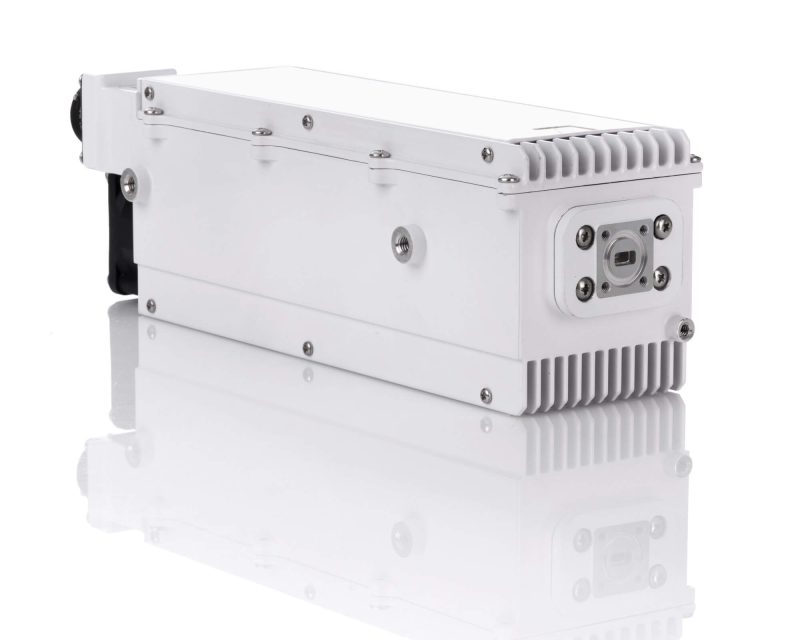

Ka-Band 12 watt Dart BUC

The 12 watt Ka-Band Stinger BUC provides 12 watts of rated power in a a 2.4 lb package. It is ideal for a higher power upgrade to existing VSAT terminals.  The Ka- Band Dart is used on US Government programs of record and has  record of reliability and performance beyond anything in its class.  The Dart and the Ka-Band Flatpack BUCs have  identical RF performance with the Dart proving a traditional bolt-on ease of integration onto existing terminals.

Description
  • Model: Dart-Ka-12 watt
  • Transmit Band: Ka
  • Rated Power:  12watt, 40.8 dBm
  • Linear Power (single carrier spectral regrowth): 38.8 dBm / 7.5 watt
  • Linear Power (two tone intermodulation): 37.8 dBm / 6 watt
  • Options: Single Band 29-30GHz, Single Band 30-31 GHz,  Dual Band
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color, Optional DC Power over IFL, Keyline
Compare BUCs in this class
