Ku-Band 25 watt Flatpack BUC
The 25 watt Ku-Band Flatpack BUC provides 16 watts of linear power in a 1.75 lb package. It is ideal for an integrated design into compact terminals and is used in several flat panel antenna terminals available on the market . The RF performance of the Ku-Band Flatpack is identical to the Ku-Band Cube BUC and the compact shape and high level of integration of this BUC make it perfect for inclusion in flat panel antennas and embedded designs.
Description
- Model: Flatpack-Ku-25
- Transmit Band: Ku
- Frequency (GHz): 13.75-14.5 (also 14.0-14.5 GHz)
- Rated Power: 44 dBm / 25 watt
- Linear Power (single carrier spectral regrowth): 42 dBm / 16 watt
- Linear Power (two tone intermodulation): 41 dBm / 12.6 watt
- M&C: Serial RS-485 or RS-232
- Status: Production
- Configuration Options: M&C Interface
Additional information
| Weight | 1.75 lbs |
|---|---|
| Dimensions | 5.0 × 7.0 × 1.0 in |

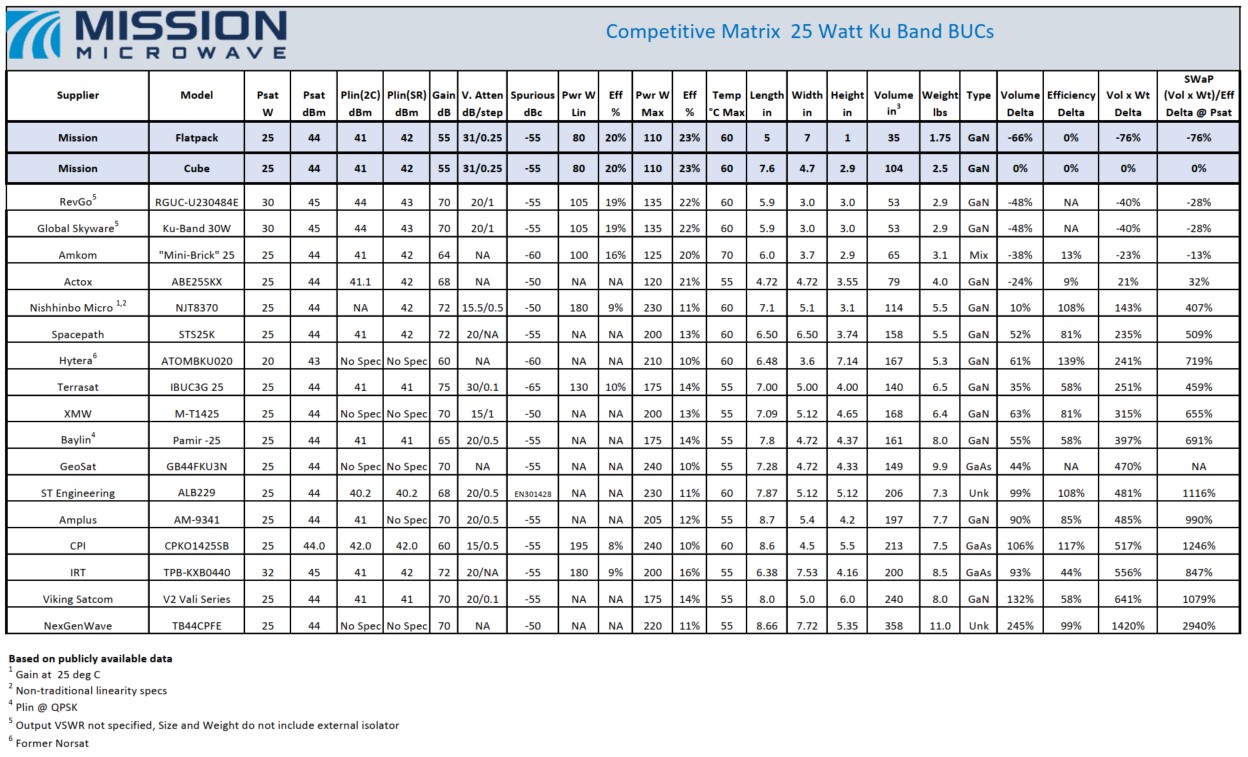

Compare BUCs in this class
