Ka-Band 200 watt Titan BUC

The Ka-Band Titan is used on a range of tactical and maritime terminals to provide extremely high throughput.  The Titan is a primary source for replacing TWT SSPA’s and BUC’s on transportable terminals and Ka-Band gateways.

Description
  • Model: Titan-Ka-200
  • Transmit Band: Ka
  • Transmit Frequency: 29.0-31.0 GHz
  • Rated Power: 53 dBm / 200 watt
  • Linear Power (single carrier spectral regrowth): 51 dBm / 126 watt
  • Linear Power (two tone intermodulation): 50 dBm / 100 watt
  • Options: Single Band 29-30GHz, Single Band 30-31 GHz,  Dual Band
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color
Additional information
Weight 22 lbs
Dimensions 15.25 × 7.0 × 7.0 in

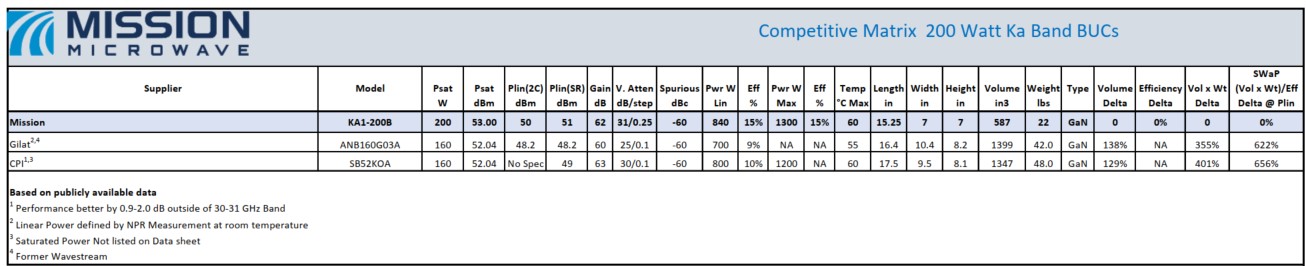

Compare BUCs in this class
