X-Band 400 watt (200 watt linear) Low PIM MOAB BUC
The 400 watt X-Band MOAB BUC produces 53 dBm of low-PIM linear power in a compact and reliable package. This MOAB BUC shares a common electrical and control interface with with the Ku-Band MOAB and is frequently used in a multi-band transportable gateways.
Description
- Model: MOAB-X-400
- Transmit Band: X
- Transmit Frequency: 7.9-8.4 GHz
- Input Power: 120-240 VAC
- Rated Power: 56 dBm / 400 watt
- Linear Power (two tone intermodulation): 53 dBm / 200 watt
- M&C: Ethernet via Mission GUI or SNMP V3, Serial
- Status: Production
- Configuration Options: M&C Interface, Color
Additional information
| Weight | 39 lbs |
|---|---|
| Dimensions | 22 × 12.8 × 7.5 in |

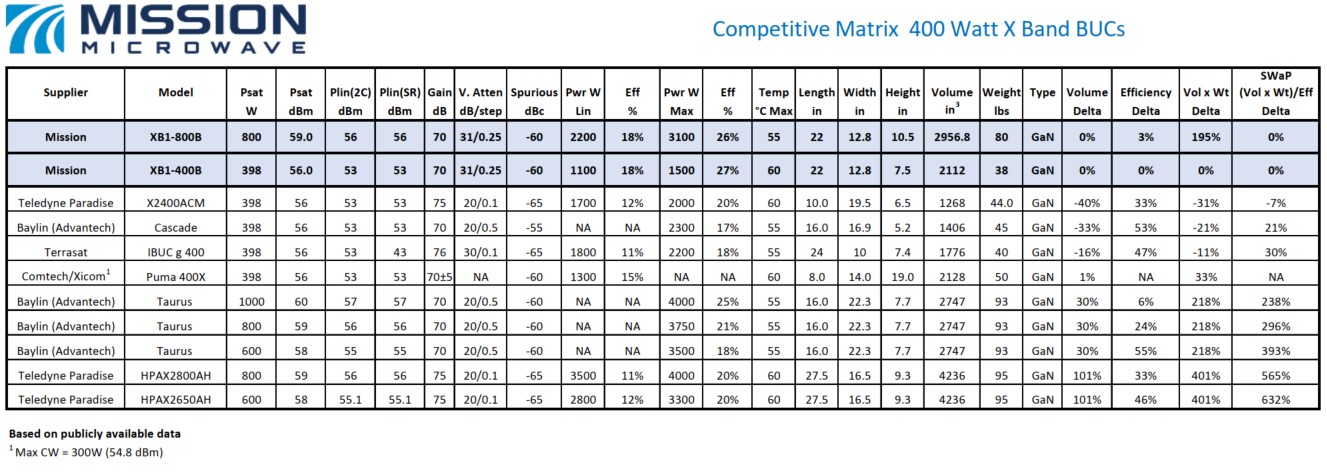

Compare BUCs in this class
