Ku-Band 750 watt Block Upconverter / Amplifier MOAB

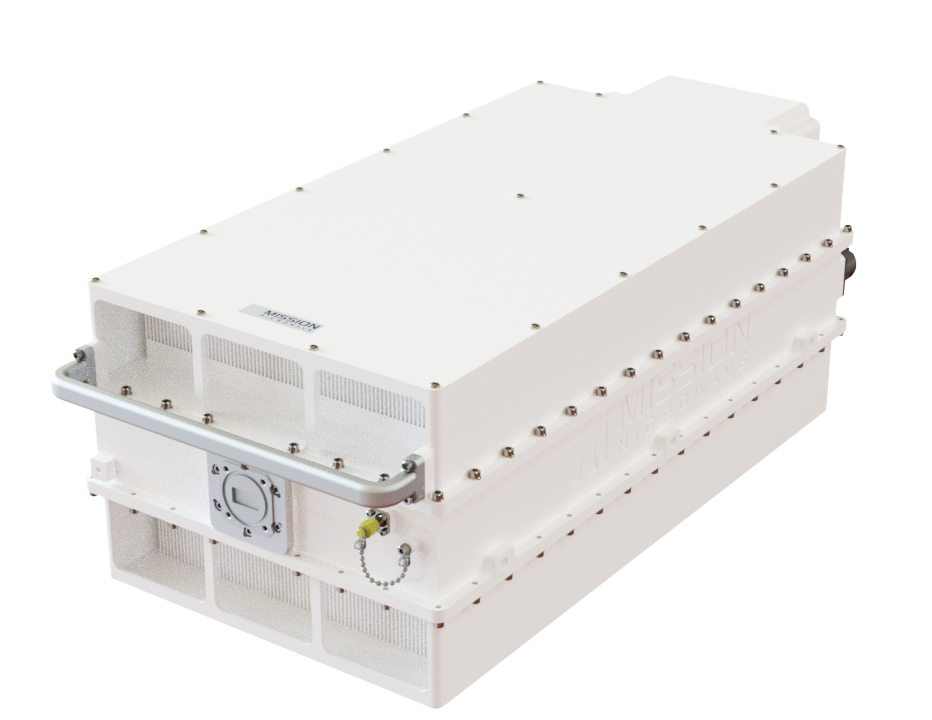

The 750W Saturated MOAB Ku-Band Block Upconverter is the industry’s most compact & lightweight 750W Linear Ku-band solid state power amplifier. Mission Microwave’s proprietary power combining technology and thorough system optimization have produced a rugged 48 lb amplifier that can mount directly on the antenna, eliminating excess losses to the feed.
Description
- Model: MOAB-Ku-750 watt Block Upconverter / Amplifier
- Transmit Band: Ku
- Frequency (GHz): 13.75 – 14.50 GHz (Standard Band), 12.75 – 13.25 GHz (Low Band option), Available up to 14.8 GHz
- Rated Power: 58.75 dBm / 750 Watt (typical)
- Linear Power (two tone intermodulation): 55 dBm / 316 Watt (PLIN2C)
- Gain: 70 dB nominal
- L-Band Input: 950 – 1700 MHz (Standard Band), 950 – 1450 MHz (Low Band)
- Power Consumption: 2.8 kW at linear output power
- Prime Power: 200 – 240 VAC, 50–60 Hz
- M&C: RS-485, RS-232, Optional Ethernet (RJ-45)
- Operating Temperature: –40°C to +60°C
- Status: Production
- Configuration Options: 1:1 Redundancy, 1:2 Redundancy, Ethernet M&C Interface

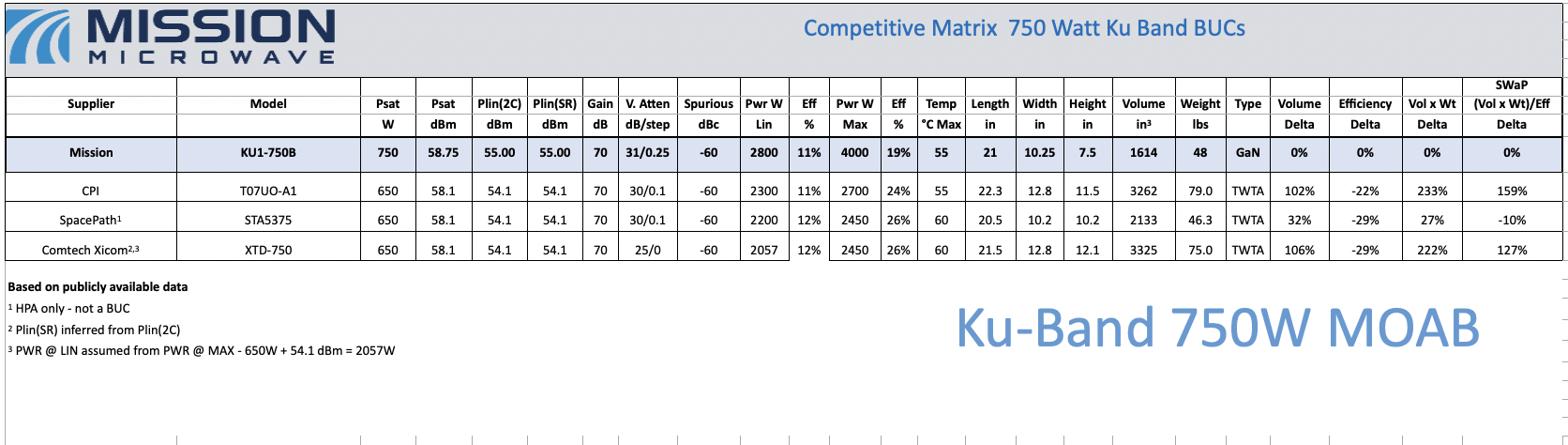

Additional information
| Weight | 48 lbs |
|---|---|
| Dimensions | 21 × 10.25 × 7.5 in |
