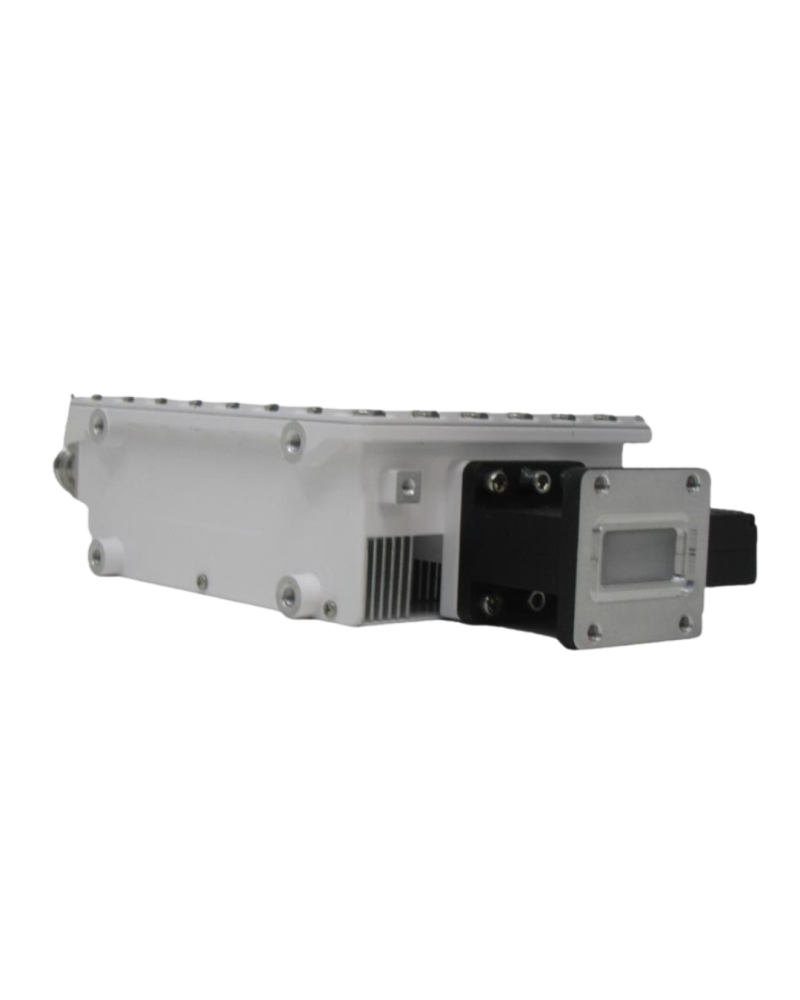

X-Band 40 watt Cube BUC

The 40 watt X-Band Cube BUC produces 43.5 dBm of single carrier linear power in an ultra compact and reliable package weighting only 2.5 lbs. This Cube BUC shares a common electrical and control interface with with the Ka- and Ku-Band Stinger  BUCs and is frequently used in a multi-band terminal families.

  • Model: Cube-X-40
  • Transmit Band: X
  • Transmit Frequency: 7.9-8.4 GHz
  • Input Power: +22 to +54 VDC
  • Rated Power: 46 dBm / 40 watt
  • Linear Power (single carrier spectral regrowth): 43.5dBm / 22.4 watt
  • Linear Power (two tone intermodulation): 43 dBm / 20 watt
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color, Keyline

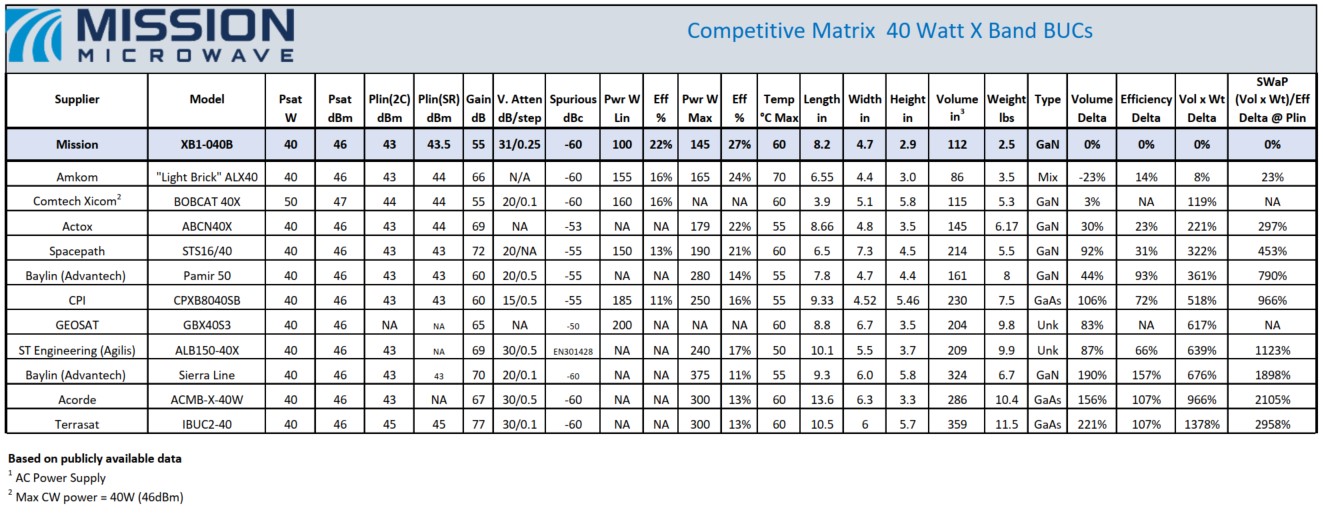

Compare BUCs in this class
