X-Band 50 watt Stinger BUC

The 50 watt X-Band Stinger BUC produces 44.5 dBm of single carrier linear power in an ultra compact and reliable package. This Stinger BUC shares a common electrical and control interface with with the Ka- and Ku-Band Stinger  BUCs and is frequently used in a multi-band terminal families.

Category:
Description
  • Model: Stinger-X-50
  • Transmit Band: X
  • Transmit Frequency: 7.9-8.4 GHz
  • Input Power: +22 to +54 VDC
  • Rated Power: 47 dBm / 50 watt
  • Linear Power (single carrier spectral regrowth): 44.5 dBm / 28 watt
  • Linear Power (two tone intermodulation): 44 dBm / 25 watt
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color, Keyline
Additional information
Weight 4.5 lbs
Dimensions 10.9 × 3.5 × 3.5 in

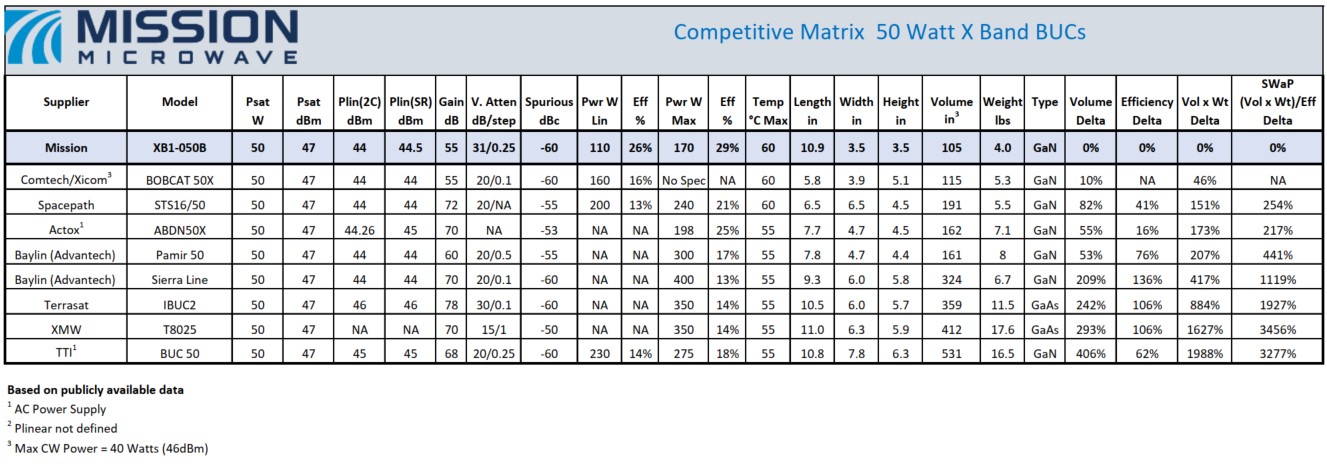

Compare BUCs in this class
