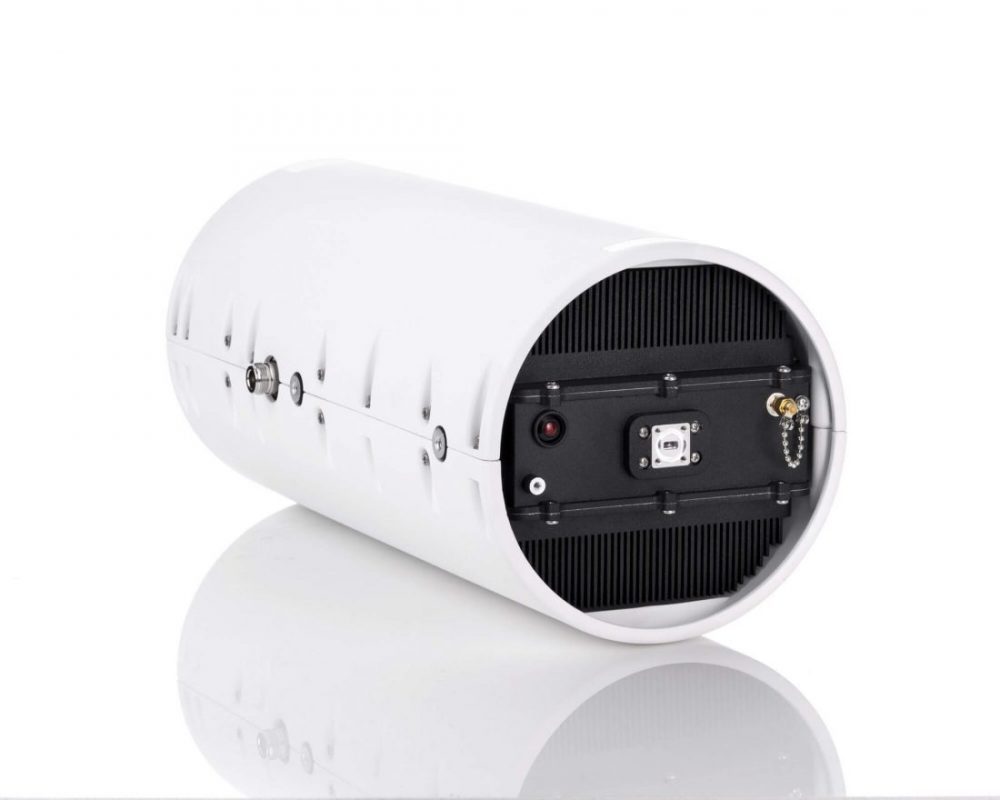

Ka Titan
Ka-Band 200 watt Titan BUC
March 9, 2021
Ka band MOAB
Ka-Band 400 watt MOAB SSPA
April 7, 2021

X-Band 100 watt Stinger BUC

The 100 watt X-Band Stinger BUC produces 47.5 dBm of single carrier linear power in an ultra compact and reliable package. This Stinger BUC shares a common electrical and control interface with with the Ka- and Ku-Band Stinger  BUCs and is frequently used in a multi-band terminal families.

Category:
Description
  • Model: Stinger-X-100
  • Transmit Band: X
  • Transmit Frequency: 7.9-8.4 GHz
  • Input Power: +48 VDC
  • Rated Power: 50 dBm / 100 watt
  • Linear Power (single carrier spectral regrowth): 47.5Bm / 56.2 watt
  • Linear Power (two tone intermodulation): 47 dBm / 50 watt
  • Status: Production
  • Configuration Options: M&C Interface, Color, Keyline
Additional information
Weight 4.5 lbs
Dimensions 12.25 × 3.5 × 3.5 in
