X-Band 800 watt (400 watt linear) Low PIM MOAB BUC

The 800 watt X-Band MOAB BUC produces 56 dBm of low-PIM linear power in a compact and reliable package. This MOAB BUC shares a common control interface with the Ka- and Ku-Band MOAB and is frequently used in a multi-band transportable gateways.

Categories: ,
Description
  • Model: MOAB-X-800
  • Transmit Band: X
  • Transmit Frequency: 7.9-8.4 GHz
  • Input Power: 200-240VAC
  • Rated Power: 59 dBm / 800 watt
  • Linear Power (two tone intermodulation): 56 dBm / 400 watt
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color
Additional information
Weight 80 lbs
Dimensions 22 × 12.8 × 10.5 in

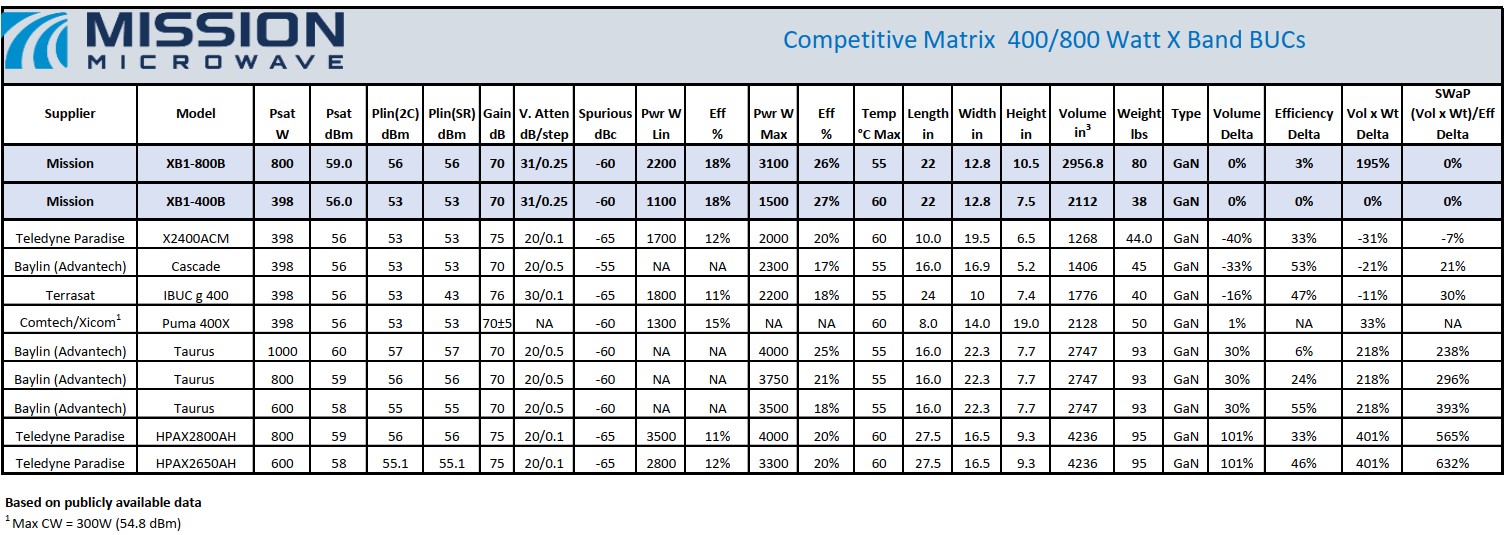

Compare BUCs in this class
