Ka-Band 20 watt Cube BUC
The 20 watt Ka-Band Cube BUC continues to transform the Ka-band mobility market by offering 20 watts of Ka-band power in a compact 2 lb package. The Ka- Band Cube enables a new class of lightweight high-throughput terminals for multi-constellation ground terminals for maritime, airborne and transportable SATCOM applications.
Description
- Model: Cube-Ka-20 watt
- Transmit Band: Ka
- Rated Power: 20 watt, 43dBm
- Linear Power (single carrier spectral regrowth): 12.5 watt, 41dBm
- Linear Power (two tone intermodulation): 10 watt, 40dBm
- Options: Single Band 29-30GHz, Single Band 30-31 GHz, Dual Band
- M&C: Ethernet via Mission GUI or SNMP V3, Serial
- Status: Pre-Production, accepting orders and supporting customer terminal design verification
- Configuration Options: M&C Interface, Color, Open BMIP in 29-30 GHz Band
Additional information
| Weight | 2 lbs |
|---|

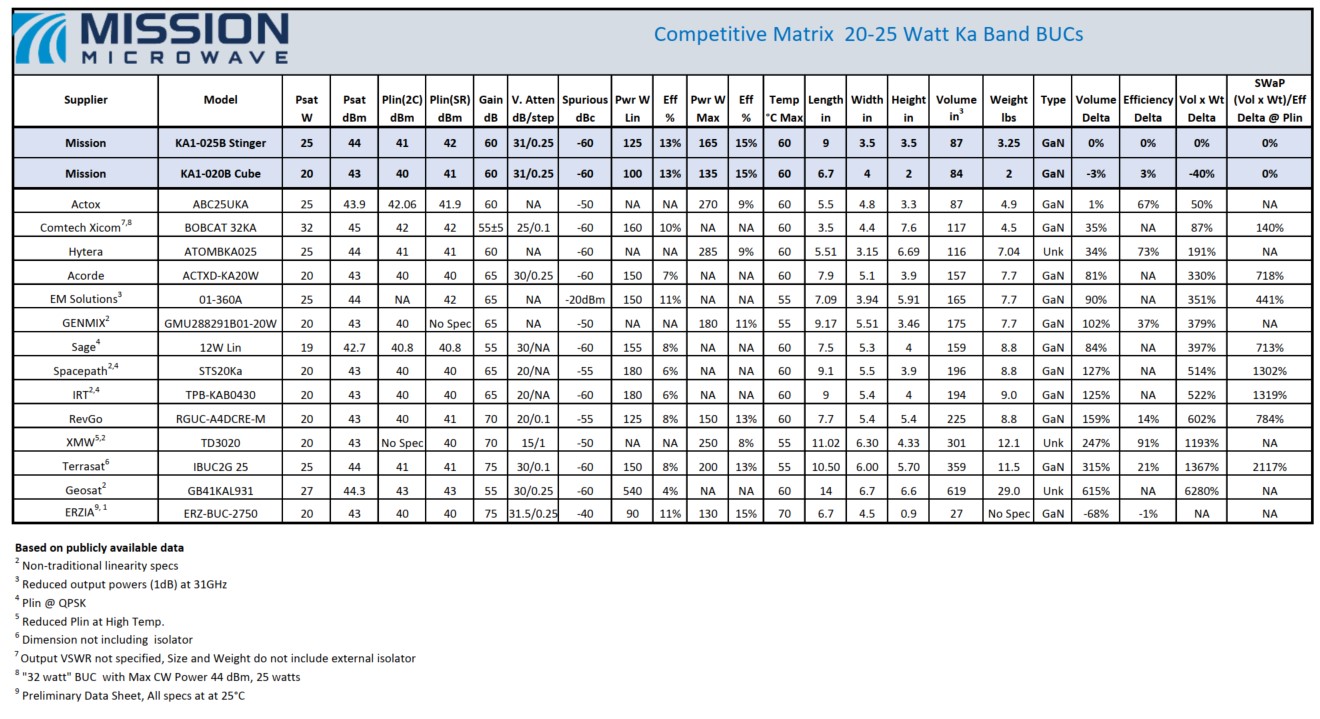

Compare BUCs in this class
