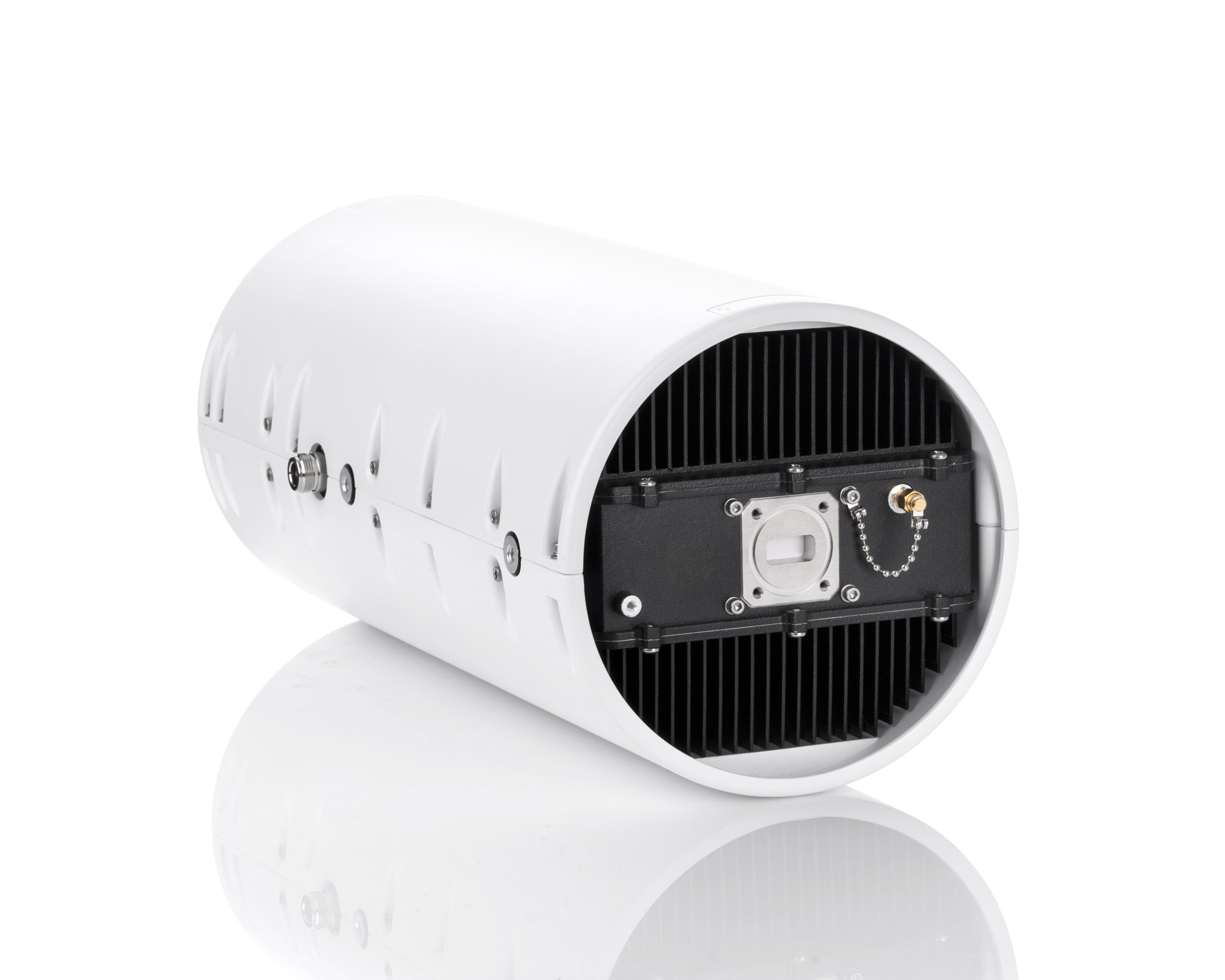

Ku-Band 200 watt Titan BUC
March 9, 2021
Ka-20w-Cube-buc
Ka-Band 20 watt Cube BUC
March 9, 2021

Ka-Band 12 watt Flatpack BUC

The 12 watt Ka-Band Flatpack BUC provides 12 watts of rated power in a 1.75 lb package. It is ideal for an integrated design into compact terminals and is used in several flat panel antenna terminals available on the market .

Description
  • Model: Flatpack Ka-12 watt
  • Transmit Band: Ka
  • Transmit Frequency: 29.0-31.0 GHz
  • Rated Power:  40.8 dBm / 12 watt
  • Linear Power (single carrier spectral regrowth): 38.8 dBm / 7.5 watt
  • Linear Power (two tone intermodulation): 37.8 dBm / 6 watt
  • Options: Single Band 29-30GHz, Single Band 30-31 GHz,  Dual Band
  • M&C: Serial RS-422/RS-232
  • Status: Production
  • Configuration Options: Open BMIP (RS-422 only)
Additional information
Weight 1.75 lbs
Dimensions 5.0 × 7.0 × 1.0 in

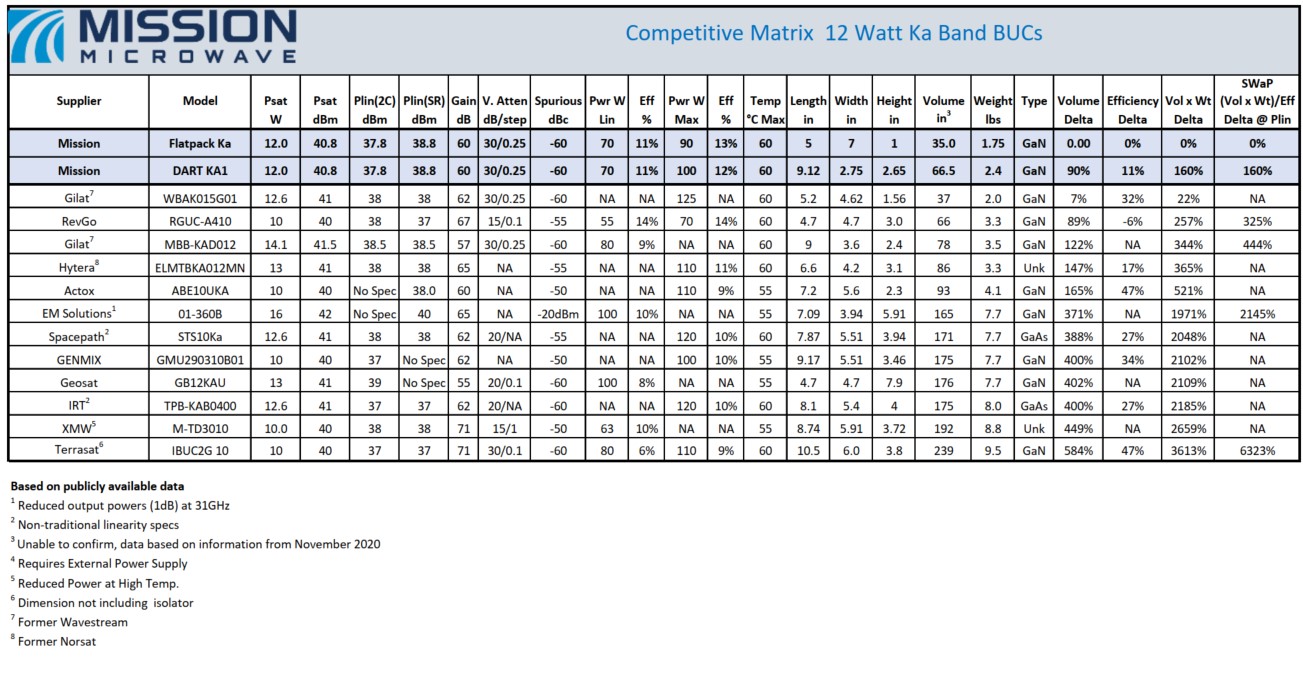

Compare BUCs in this class
Datasheet Access Center

Datasheet Access Center
