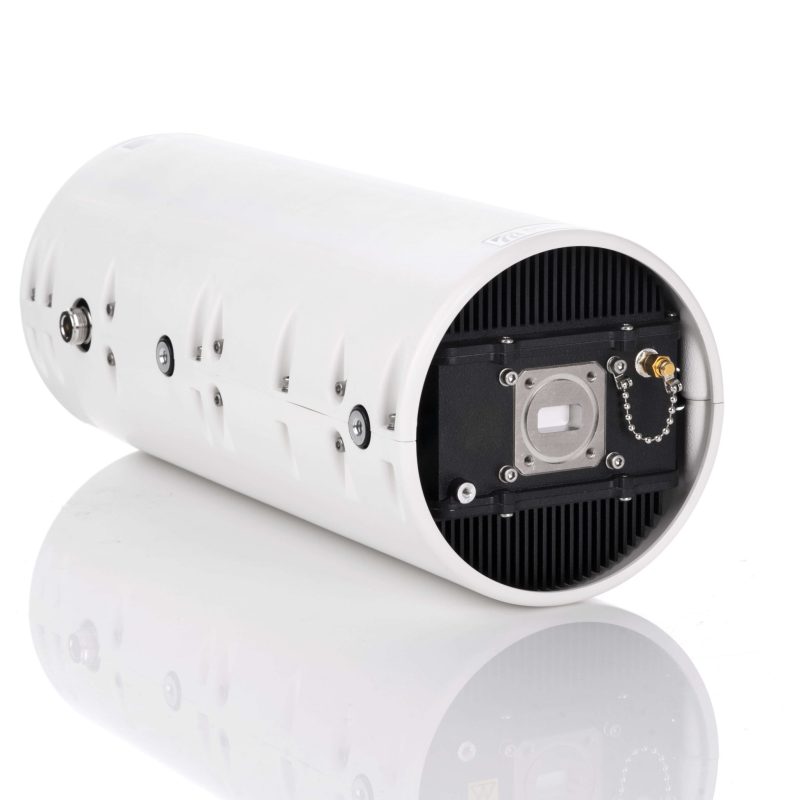

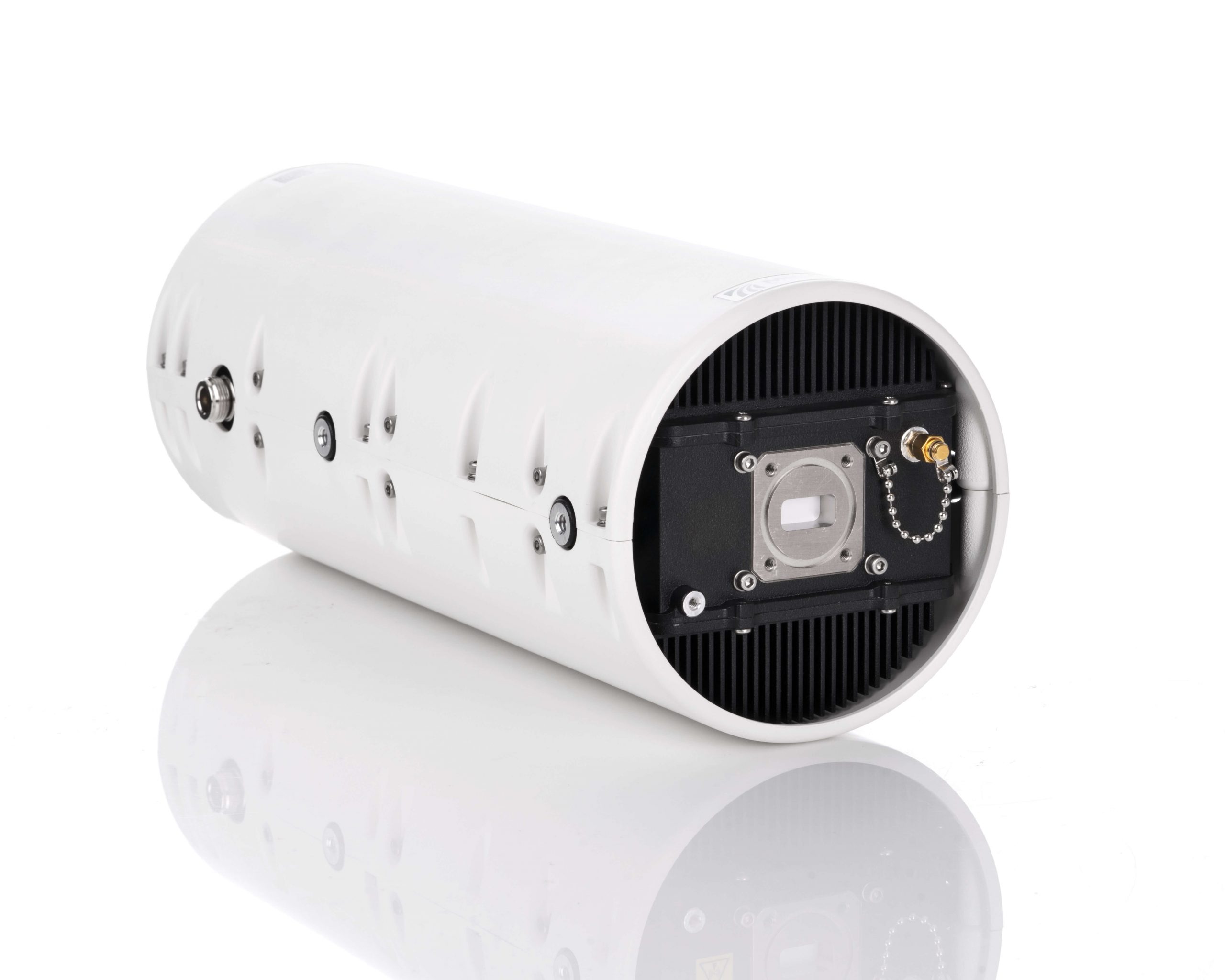

Ku-Band 100 watt Javelin BUC
March 9, 2021

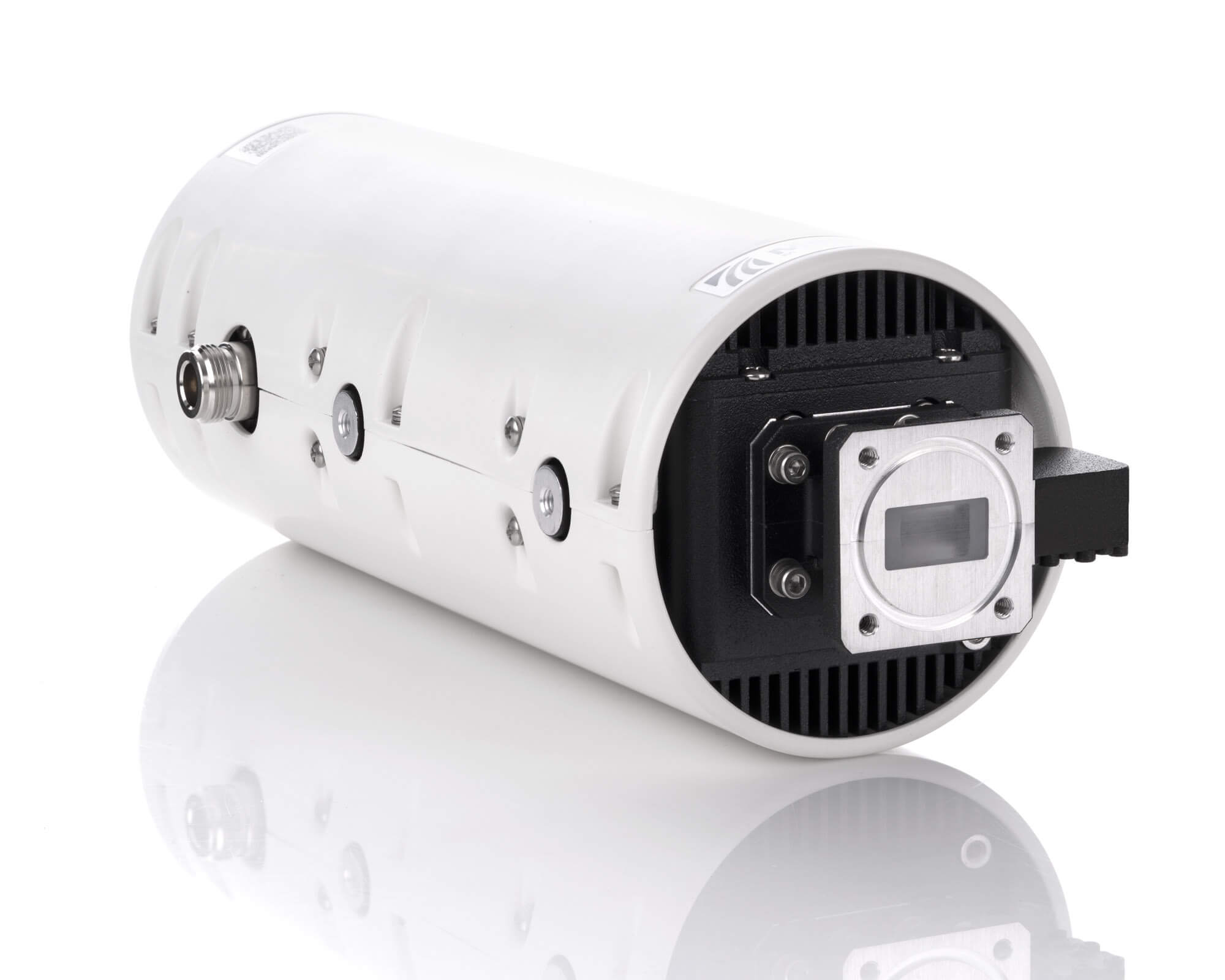

Ku-Band 55 watt Stinger BUC

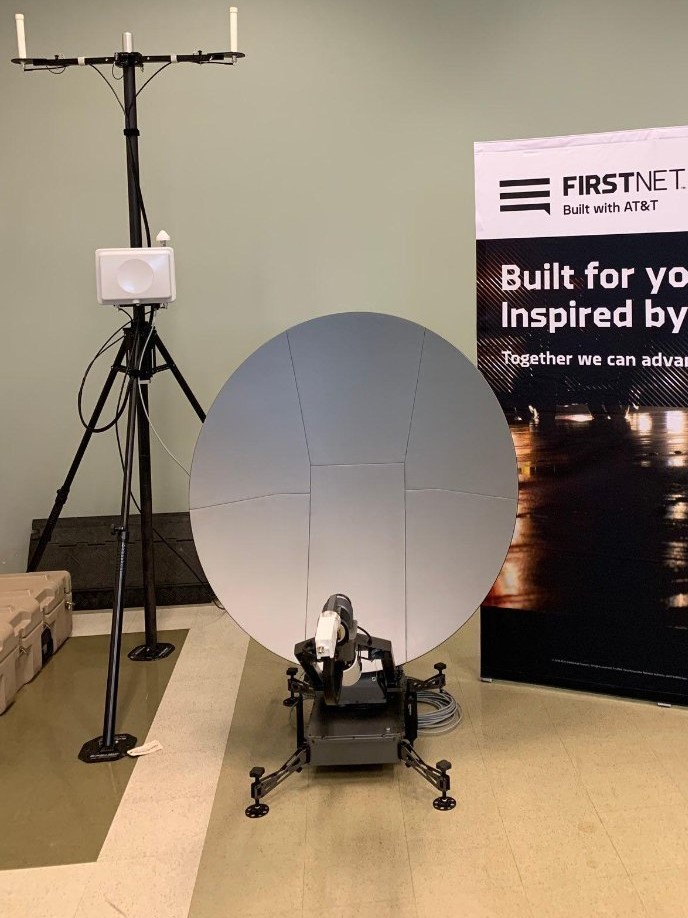

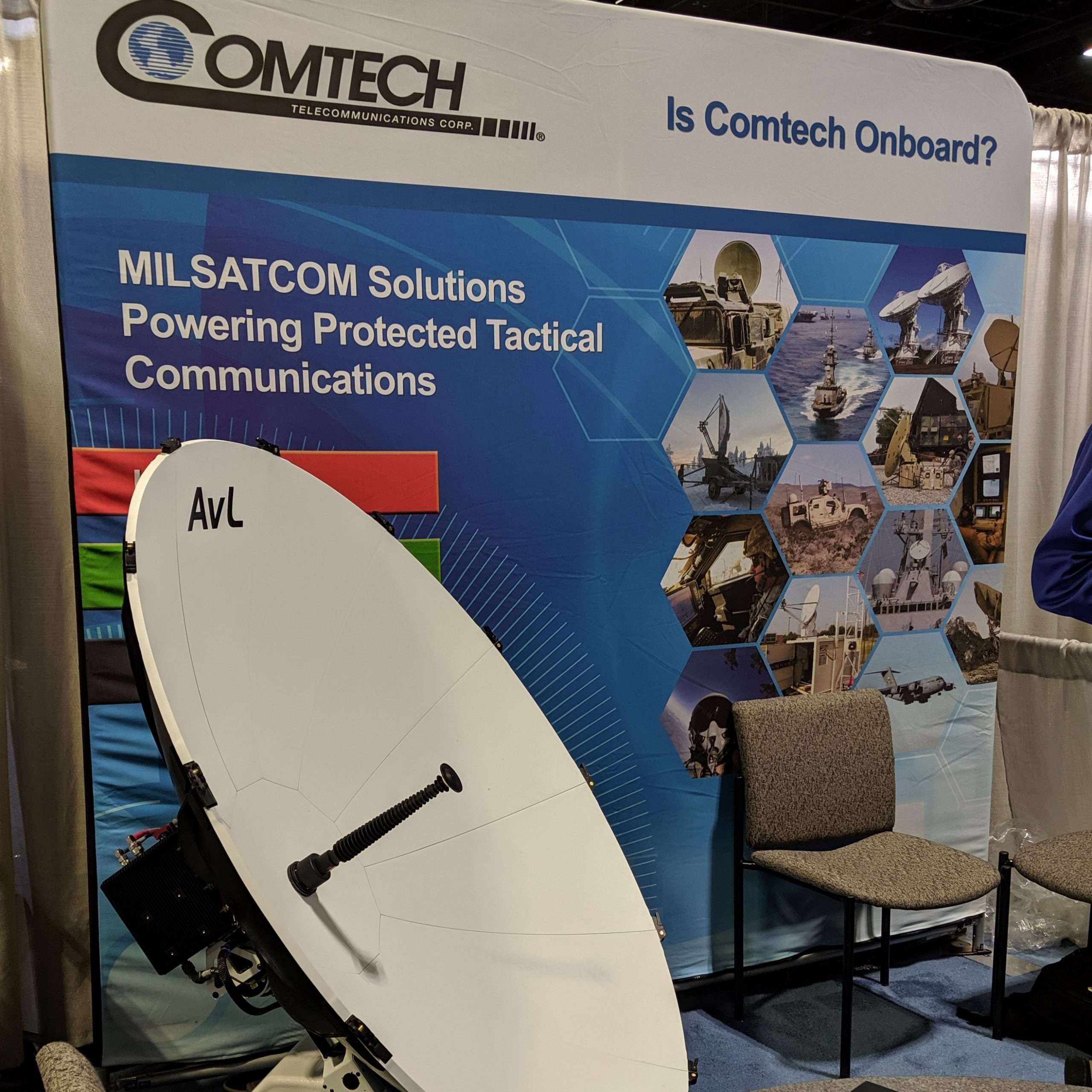

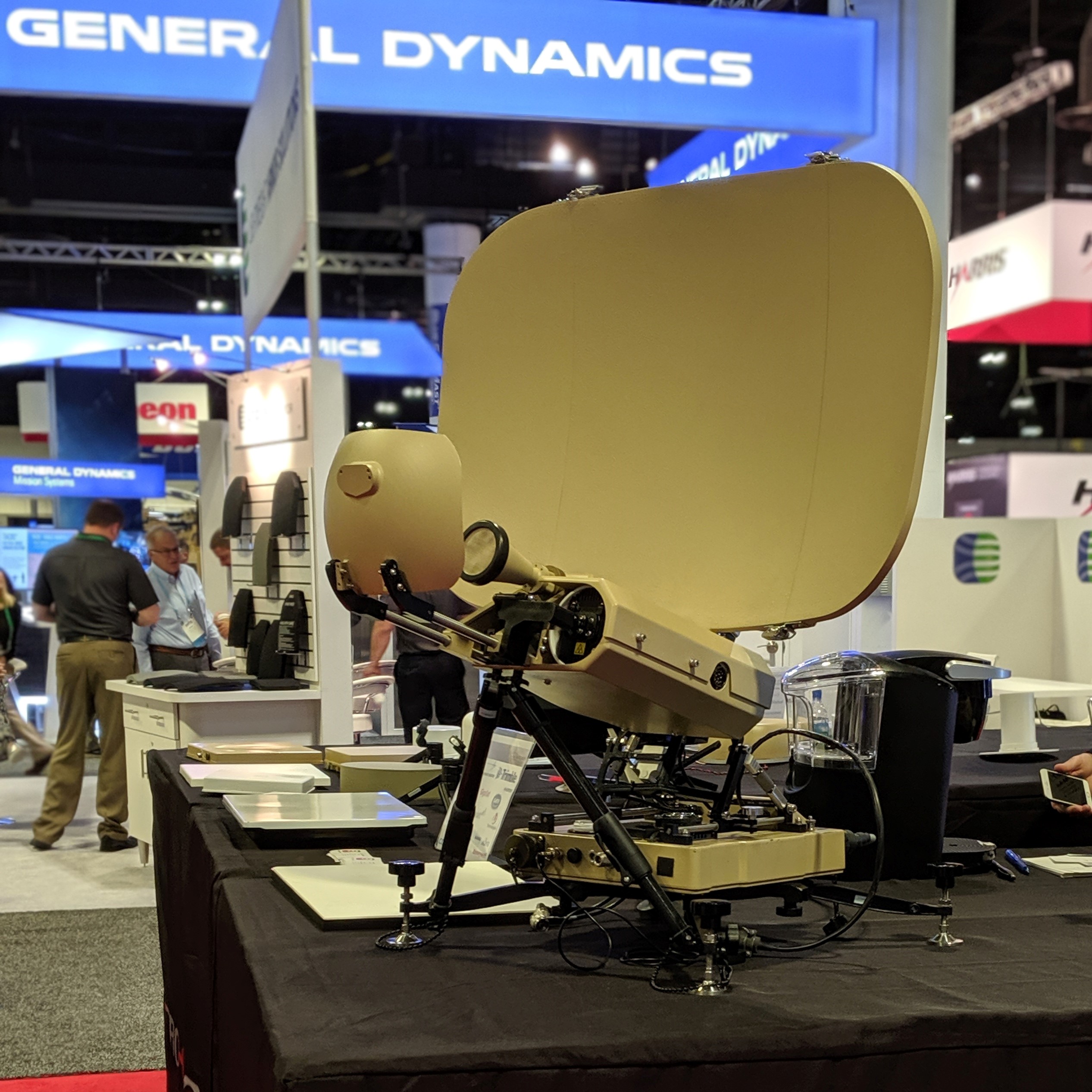

The Stinger Ku-Band 55 watt BUC is Mission Microwave’s most widely deployed signature product. In use on fixed, transportable and mobile terminals globally, the Stinger is known for its performance, reliability and ease of installation and use.  The Stinger family in X-, Ku- and Ka-Band have identical mechanical and electrical interfaces allowing for their use in multi-band SATCOM terminal designs.  At only 3.5 lbs and the industry’s leading RF efficiency the Ku-Band Stinger is the BUC that end-users demand for mission critical SATCOM terminals.

Categories: ,
Description
  • Model: Stinger -Ku-55
  • Transmit Band: Ku
  • Frequency (GHz): 13.75-14.5 (also 14.0-14.5 GHz)
  • Rated Power: 47.4 dBm / 55 watt
  • Linear Power (single carrier spectral regrowth): 45.4 dBm / 34.6 watt
  • Linear Power (two tone intermodulation): 44.4 dBm / 27.5 watt
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color, Optional external AC Power supply is available

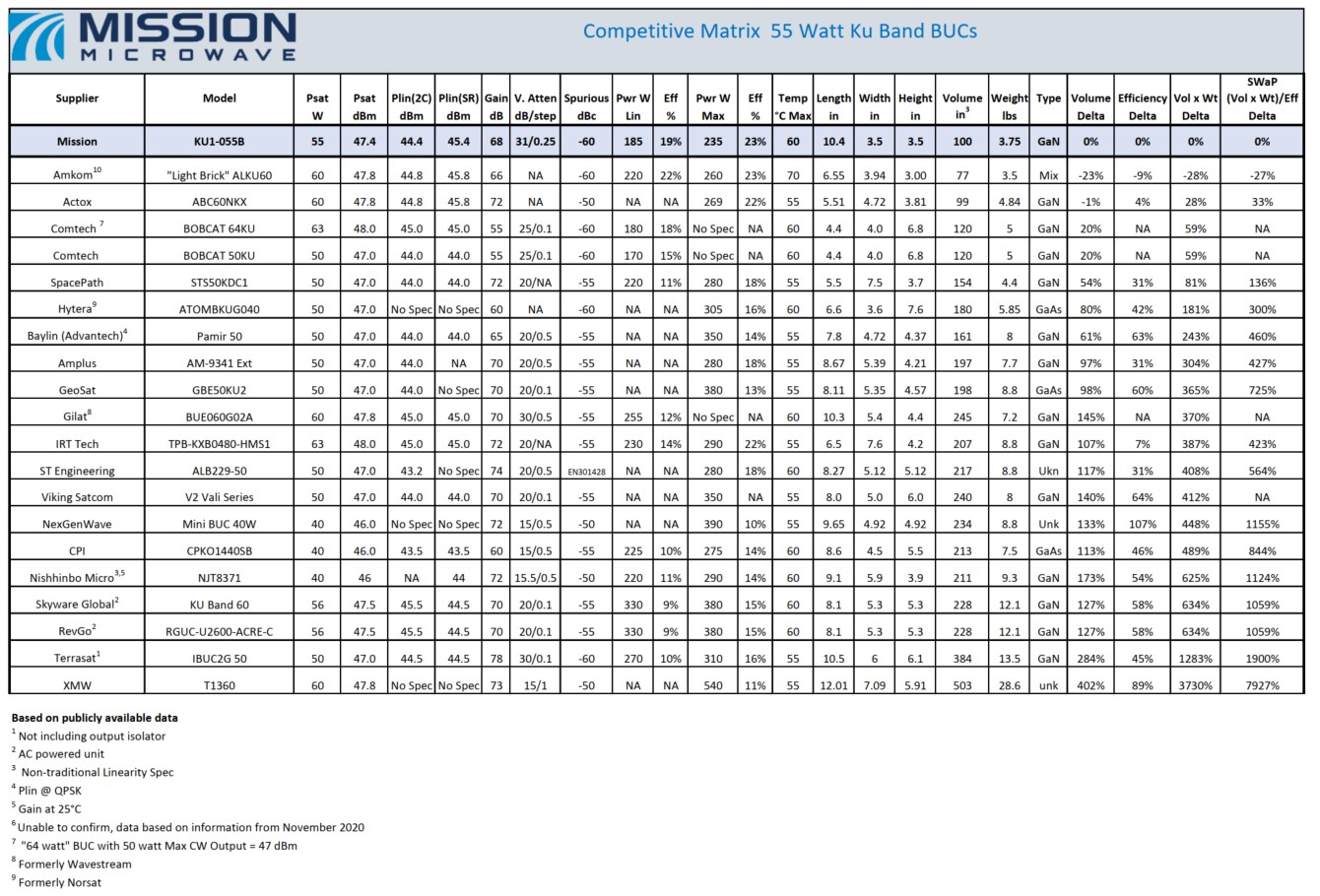

Compare BUCs in this class
