Ku-Band 100 watt Javelin BUC

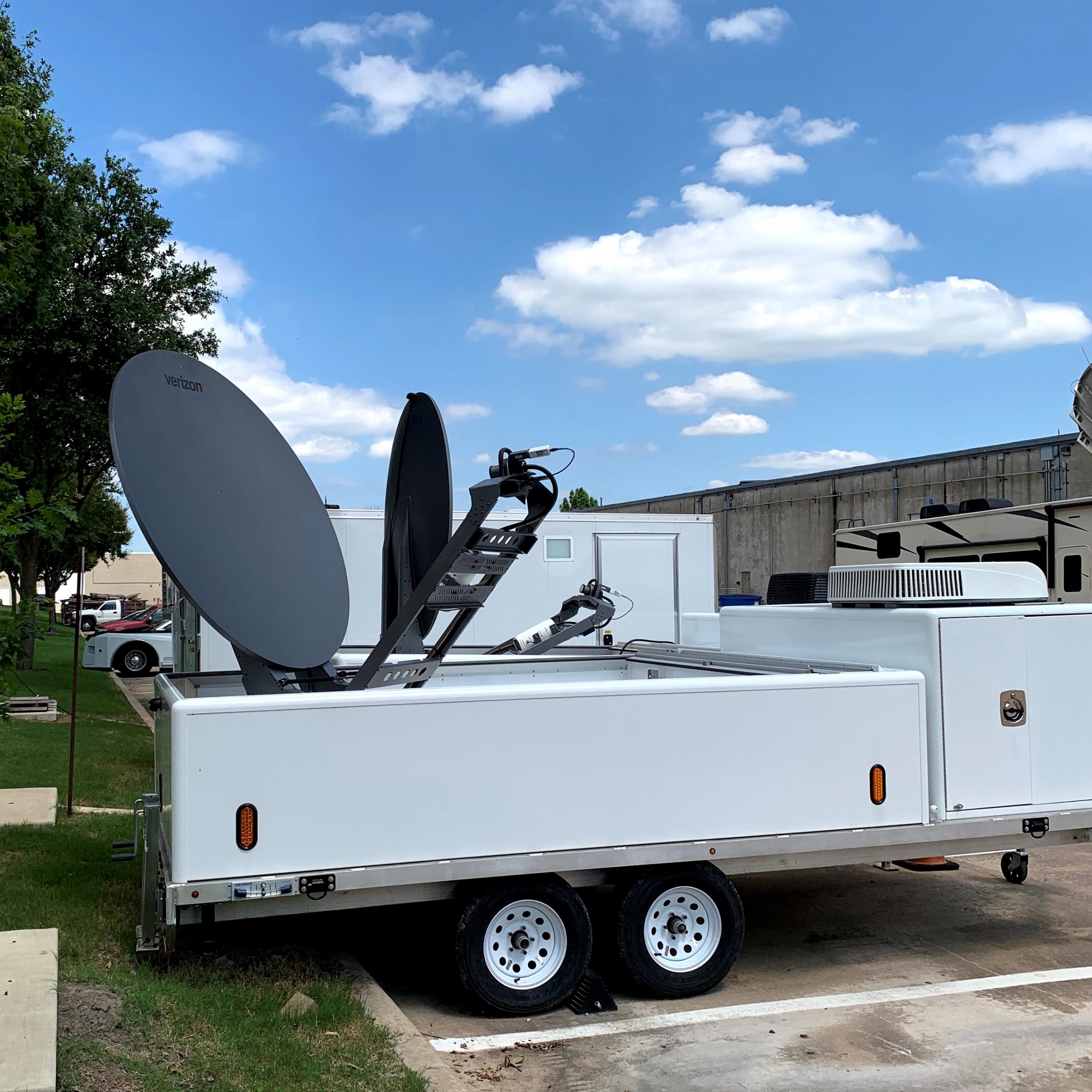

The 100 watt Ku-Band Javelin was Mission Microwave’s first product and rapidly developed  a dedicated user community. The 100 watt Javelin excels  in harsh environments and is routinely deployed on in both commercial and government  support roles in the Middle East and across North America in First Responder support networks operated by major telecom carriers.

Category:
Description
  • Model: Javelin -Ku-100
  • Transmit Band: Ku
  • Frequency (GHz): 13.75-14.5 (also 14.0-14.5 GHz)
  • Rated Power: 50 dBm / 100 watt
  • Linear Power (single carrier spectral regrowth): 48 dBm / 63 watt
  • Linear Power (two tone intermodulation): 47 dBm / 50watt
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color, DC input power available as an option

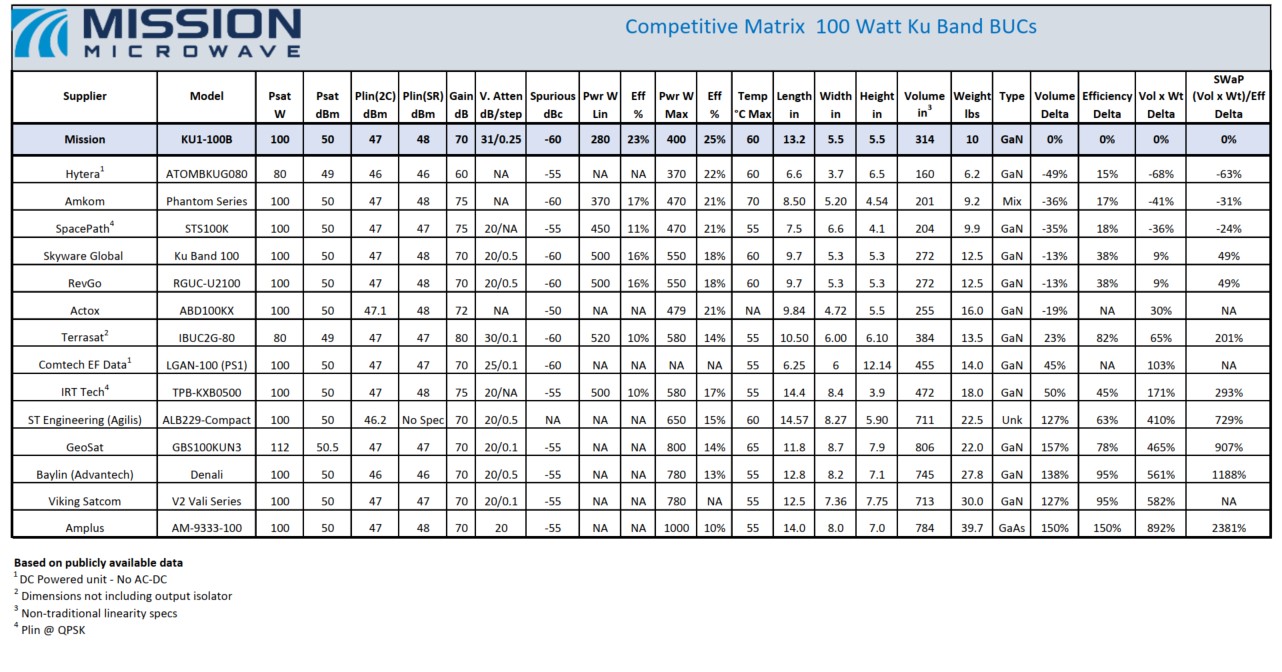

Compare BUCs in this class
