X-Band 80 watt Stinger BUC
The 80 watt X-Band Stinger BUC produces 46.5 dBm of single carrier linear power in an ultra compact and reliable package. This Stinger BUC shares a common electrical and control interface with with the Ka- and Ku-Band Stinger BUCs and is frequently used in a multi-band terminal families.
Description
- Model: Stinger-X-80
- Transmit Band: X
- Transmit Frequency: 7.9-8.4 GHz
- Input Power: +22 to +54 VDC
- Rated Power: 49 dBm / 80 watt
- Linear Power (single carrier spectral regrowth): 46.5Bm / 44.7 watt
- Linear Power (two tone intermodulation): 46 dBm / 40 watt
- M&C: Ethernet via Mission GUI or SNMP V3, Serial
- Status: Production
- Configuration Options: M&C Interface, Color, Keyline
Additional information
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 11.0 × 3.5 × 3.5 in |

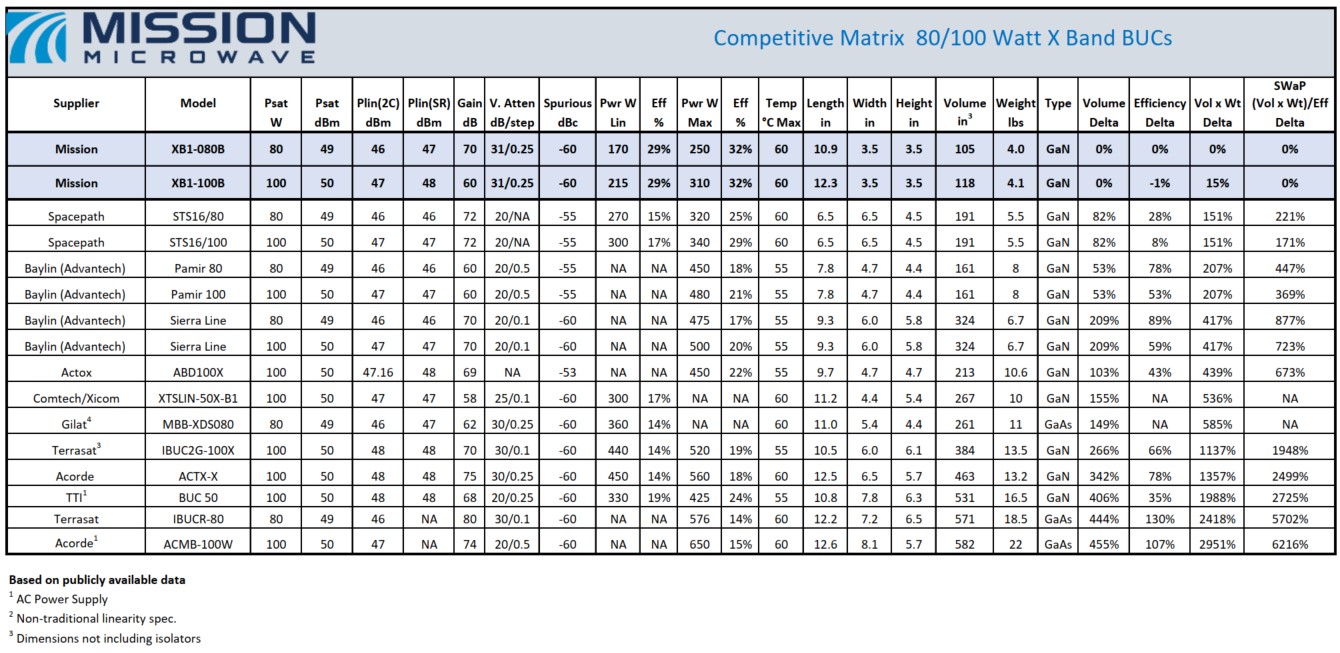

Compare BUCs in this class
