Ka-Band 50 watt Javelin BUC

The Ka-Band 50 watt Javelin BUC is well suited for maritime, tactical and multi-orbit terminals.  The 50 watt Javelin mechanical and electrical interfaces are identical in all respects to the 100 watt version allowing terminal designed to provide their customers with a range of power options on a single common platform.

Description
  • Model: Javelin-Ka-50 watt
  • Transmit Band: Ka
  • Transmit Frequency: 29.0-31.0 GHz
  • Rated Power: 47 dBm / 50 watt
  • Linear Power (single carrier spectral regrowth): 45 dBm / 31.6 watt
  • Linear Power (two tone intermodulation): 44 dBm / 25 watt
  • Options: Single Band 29-30GHz, Single Band 30-31 GHz,  Dual Band
  • M&C: Ethernet via Mission GUI or SNMP V3, Serial
  • Status: Production
  • Configuration Options: M&C Interface, Color, DC input power available as an option
Additional information
Weight 10 lbs
Dimensions 13.2 × 5.5 × 5.5 in

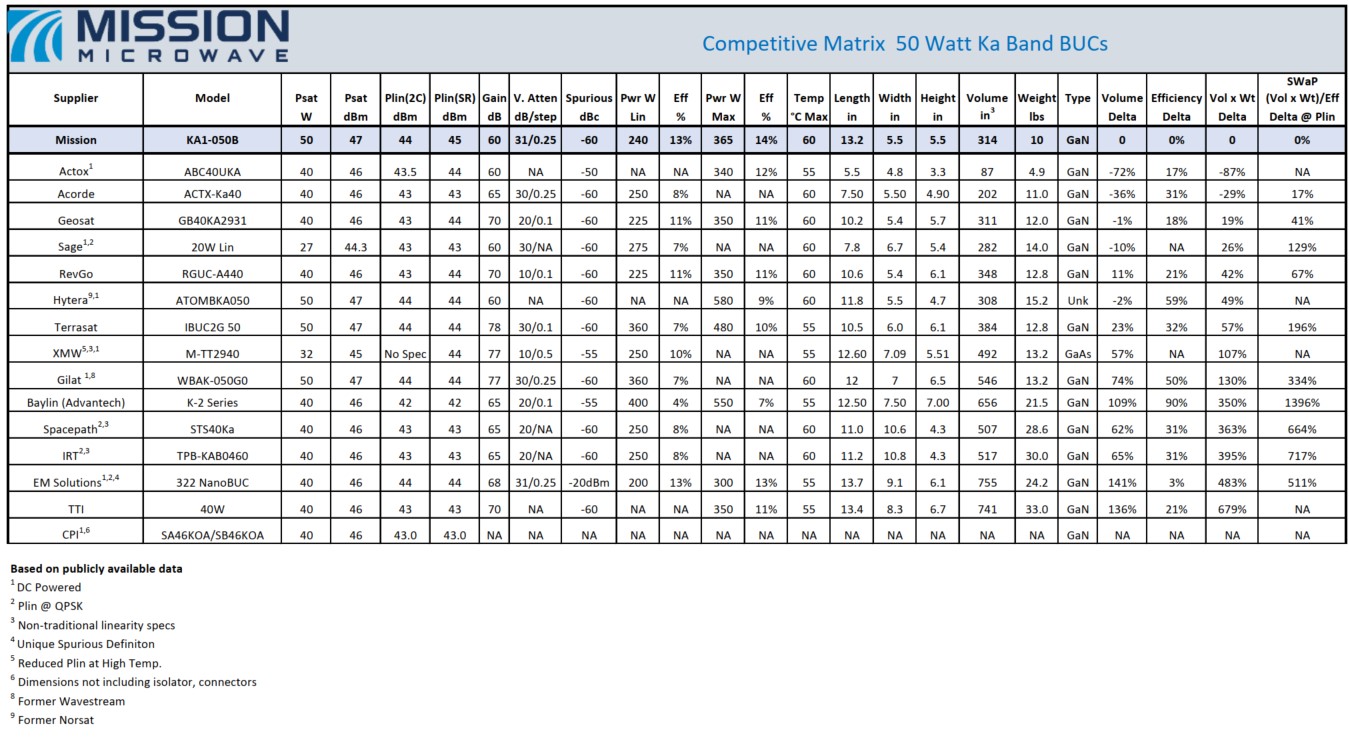

Compare BUCs in this class
